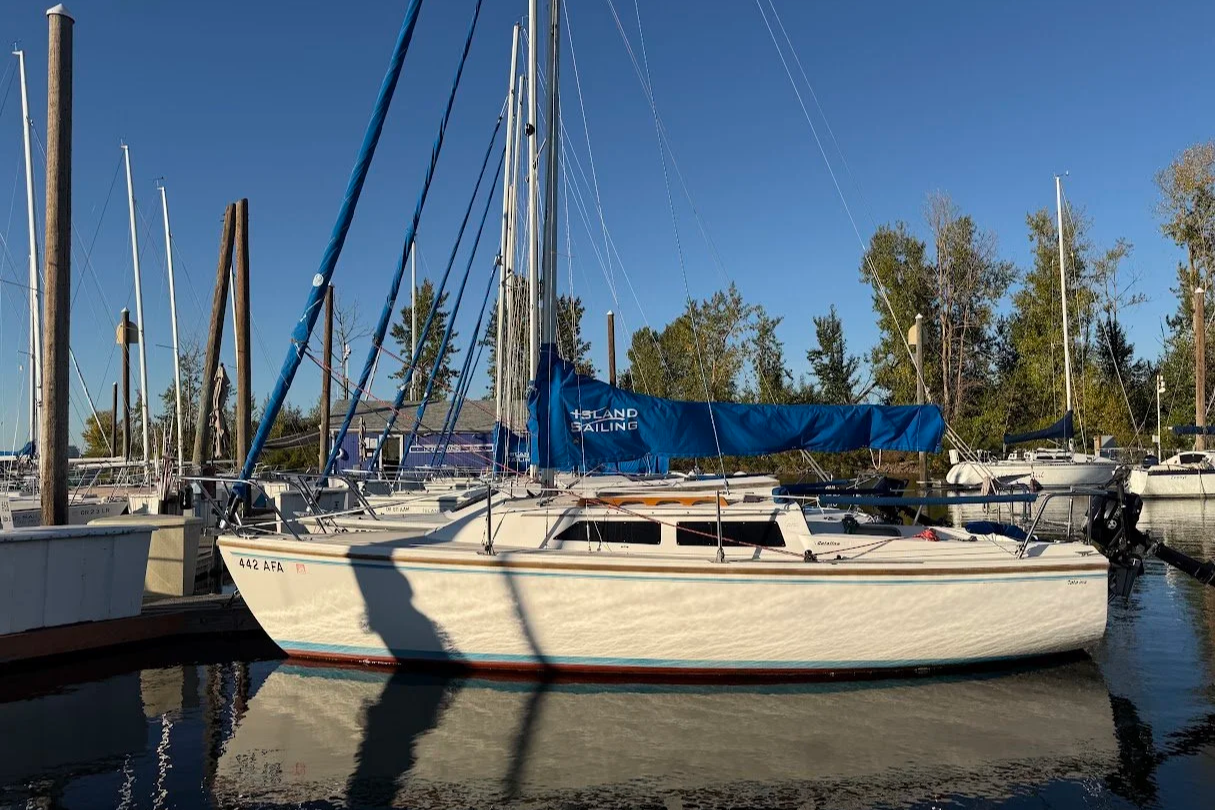

CATALINA 22 “WE’LL SEA”

Hull Type
Swing Keel

LOA
21.50 ft / 6.55 m

Beam
7.67 ft / 2.34 m

Rigging Type
Masthead Sloop

Ballast
550 lb / 249 kg

S.A/Disp.
19.80

First Built
1969

# Built
15000

Construction
FG

LWL
19.33 ft / 5.89 m

S.A. (reported)
212.00 ft2 / 19.70 m2

Draft (max)
2.00 ft / 0.61 m

Displacement
2,250 lb / 1,021 kg

Bal./Disp.
24.44

Disp./Len.
139.07

Builder
Catalina Yachts (USA)

Designer
Frank V. Butler

SAILBOAT CALCULATIONS

S.A./Disp.
19.80

Bal./Disp.
24.44

Disp./Len.
139.07

Comfort Ratio
11.53

Capsize Screening Formula
2.34

S#
3.85

RIG & SAIL PARTICULARS

I
25.83 ft / 7.87 m

P
21.00 ft / 6.40 m

S.A. Fore
103.32 ft2 / 9.60 m2

S.A. Total (100% Fore + Main Triangles)
204.75 ft2 / 19.02 m2

S.A./Disp. (calc.)
19.12

J
8.00 ft / 2.44 m

E
9.66 ft / 2.94 m

S.A. Main
101.43 ft2 / 9.42 m2

Est. Forestay Len.
27.04 ft / 8.24 m

Mast Height from DWL
25.00 ft / 7.62 m

SAILBOAT LINKS

Designer
Frank V. Butler

Builders
Catalina Yachts
Cooper Enterprises Inc. (CAN)

Associations
Catalina 22 National Association

Related Sailboats
CATALINA 22 MKII

Download Boat Record
PDF

Notes

The CATALINA 22 is one of the most popular sailboats ever in anything close to this size,. 15,000 boats sold (2009)
It has been built in different plants around the world..(Known in Australia as the BOOMAROO 22.)

A fixed keel version introduced in the early 1970’s Draft: 3.5ft; Displacement: 2,490 lbs.; Ballast: 800 lbs.

A ‘New Design’ was introduced in 1986 (featuring an opt. winged keel), and MARK II in 1995.

The CATALINA 22 SPORT was released in 2003. (Originally called the CAPRI 22 swing keel.)
From a new “fairer” mold though the hull design is the same as the original CATALINA 22.
Thanks to former Catalina dealer Joe Rose and a number of others for providing additional information.
